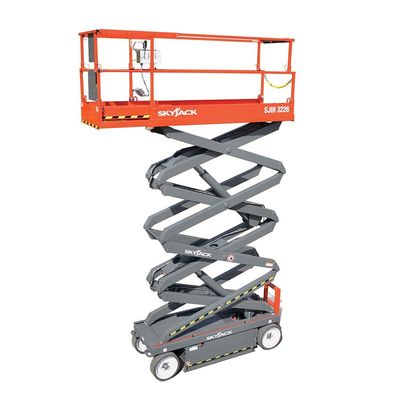

Scissor Lifts
- Height W/ Rails 2 m
- Height W/O Rails 1.6 m
- Maximum Platform Height 7.8 m
- Maximum Working Height 9.7 m
- Extension Deck (Roll Out) 4’ (1.22 m)
- Ground Clearance (Stowed) 3.5” (8.89 cm)
- Ground Clearance (Raised) 0.75” (1.91 cm)
- Wheelbase 69” (1.75 m)
- Weight 4,700 lbs (2,132 kg)
- Gradeability 30%
- Turning Radius (Inside) 47.5” (1.21 m)
- Turning Radius (Outside) 93.5” (2.37 m)
- Lift Time (With Rated Load) 54 sec
- Lower time (With Rated Load) 32 sec
- Drive Speed (Stowed) 2 mph (3.2 km/h)
- Drive Speed (Raised) 0.6 mph (1 km/h)
- Capacity (Overall) 1,000 lbs (454 kg)
- Distributed Capacity (Main Platform) 700 lbs (318 kg)
- Distributed Capacity (Extension Deck) 300 lbs (136 kg)
- Local Floor Load (With Rated Load) 235 psi (1620 kPa)
- Overall Floor Load (With Rated Load) 191 psf (9 kPa)
- Maximum # of Persons 3
- Wind Rating 28 mph (12.5 m/s)
- Tire Type Solid, N/M Solid,
- Tire Size 16 x 5 x 12 16 x 5 x 12
